← Circuit results

Circuit

Qwen 3.6 27B MTP GGUF · typescript

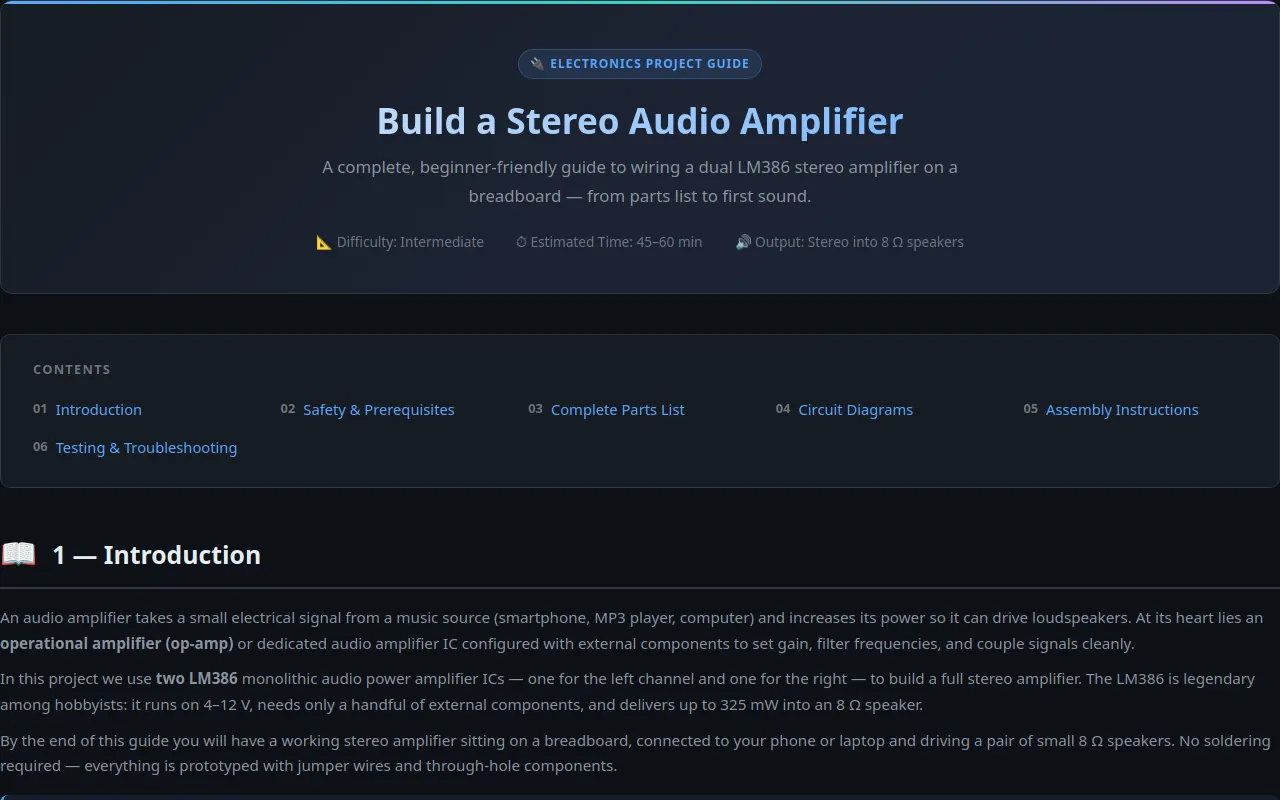

Initial view of Circuit

Reviews & generation details

Reviews

No human review yet. Unreviewed does not mean unsuccessful.

Generation context

Imported historical artifact. Its exact original instructions and lineage are not known.

Generation prompt · exact text unavailable

See the current prompt for reference. It may differ from the instructions used to generate this artifact.

Inspect original source 64,219 bytes · SHA-256 2dd499e486d5
<!doctype html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>Build a Stereo Audio Amplifier — Complete Breadboard Guide</title>
<style>
/* ── css: guide-style ── */
:root {
  --bg-primary: #0d1117;
  --bg-secondary: #161b22;
  --bg-tertiary: #1c2333;
  --bg-card: #1a1f2e;
  --border: #30363d;
  --border-accent: #58a6ff;
  --text-primary: #e6edf3;
  --text-secondary: #8b949e;
  --text-muted: #6e7681;
  --accent-blue: #58a6ff;
  --accent-green: #3fb950;
  --accent-orange: #d29922;
  --accent-red: #f85149;
  --accent-purple: #bc8cff;
  --accent-cyan: #39d2c0;
  --font-mono: 'SF Mono', 'Fira Code', 'Cascadia Code', 'Consolas', monospace;
  --font-sans: -apple-system, BlinkMacSystemFont, 'Segoe UI', 'Noto Sans', Helvetica, Arial, sans-serif;
}

* { margin: 0; padding: 0; box-sizing: border-box; }

html {
  scroll-behavior: smooth;
  font-size: 16px;
}

body {
  font-family: var(--font-sans);
  background: var(--bg-primary);
  color: var(--text-primary);
  line-height: 1.7;
  -webkit-font-smoothing: antialiased;
}

#app {
  max-width: 960px;
  margin: 0 auto;
  padding: 2rem 1.5rem 4rem;
}

/* ===== HEADER ===== */
.hero {
  text-align: center;
  padding: 3rem 1.5rem 2.5rem;
  margin-bottom: 2.5rem;
  background: linear-gradient(135deg, #161b22 0%, #1c2333 50%, #1a2332 100%);
  border: 1px solid var(--border);
  border-radius: 12px;
  position: relative;
  overflow: hidden;
}

.hero::before {
  content: '';
  position: absolute;
  top: 0; left: 0; right: 0;
  height: 3px;
  background: linear-gradient(90deg, var(--accent-blue), var(--accent-cyan), var(--accent-purple));
}

.hero-badge {
  display: inline-block;
  background: rgba(88, 166, 255, 0.12);
  color: var(--accent-blue);
  font-size: 0.75rem;
  font-weight: 600;
  letter-spacing: 0.08em;
  text-transform: uppercase;
  padding: 0.3em 0.9em;
  border-radius: 20px;
  border: 1px solid rgba(88, 166, 255, 0.25);
  margin-bottom: 1.25rem;
}

.hero h1 {
  font-size: 2.2rem;
  font-weight: 800;
  line-height: 1.2;
  margin-bottom: 0.75rem;
  background: linear-gradient(135deg, #e6edf3, #58a6ff);
  -webkit-background-clip: text;
  -webkit-text-fill-color: transparent;
  background-clip: text;
}

.hero-sub {
  font-size: 1.05rem;
  color: var(--text-secondary);
  max-width: 640px;
  margin: 0 auto 1.25rem;
}

.hero-meta {
  display: flex;
  justify-content: center;
  gap: 2rem;
  font-size: 0.85rem;
  color: var(--text-muted);
  flex-wrap: wrap;
}

.hero-meta span {
  display: flex;
  align-items: center;
  gap: 0.35em;
}

/* ===== TABLE OF CONTENTS ===== */
.toc {
  background: var(--bg-secondary);
  border: 1px solid var(--border);
  border-radius: 10px;
  padding: 1.5rem 2rem;
  margin-bottom: 2.5rem;
}

.toc h2 {
  font-size: 0.8rem;
  text-transform: uppercase;
  letter-spacing: 0.1em;
  color: var(--text-muted);
  margin-bottom: 0.75rem;
}

.toc ul {
  list-style: none;
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
  gap: 0.35rem 1.5rem;
}

.toc a {
  color: var(--accent-blue);
  text-decoration: none;
  font-size: 0.92rem;
  display: flex;
  align-items: center;
  gap: 0.5em;
  padding: 0.25em 0;
  transition: color 0.2s;
}

.toc a:hover { color: var(--accent-cyan); }

.toc-num {
  color: var(--text-muted);
  font-weight: 600;
  font-size: 0.8rem;
  min-width: 1.2em;
}

/* ===== SECTIONS ===== */
.section {
  margin-bottom: 3rem;
}

.section-anchor {
  display: block;
  position: relative;
  top: -2rem;
  visibility: hidden;
}

.section h2 {
  font-size: 1.55rem;
  font-weight: 700;
  margin-bottom: 1rem;
  padding-bottom: 0.5rem;
  border-bottom: 2px solid var(--border);
  display: flex;
  align-items: center;
  gap: 0.6em;
}

.section h2 .icon {
  font-size: 1.2em;
}

.section h3 {
  font-size: 1.15rem;
  font-weight: 600;
  margin: 1.5rem 0 0.6rem;
  color: var(--text-primary);
}

.section p, .section li {
  color: var(--text-secondary);
  margin-bottom: 0.6rem;
  font-size: 0.95rem;
}

.section ul, .section ol {
  padding-left: 1.5rem;
  margin-bottom: 1rem;
}

.section li { margin-bottom: 0.35rem; }

/* ===== CARDS ===== */
.card {
  background: var(--bg-card);
  border: 1px solid var(--border);
  border-radius: 10px;
  padding: 1.5rem;
  margin-bottom: 1.25rem;
}

.card-icon {
  font-size: 1.5rem;
  margin-bottom: 0.5rem;
  display: block;
}

.card h4 {
  font-size: 1rem;
  font-weight: 600;
  margin-bottom: 0.5rem;
  color: var(--text-primary);
}

.card p {
  font-size: 0.9rem;
  color: var(--text-secondary);
  margin-bottom: 0;
}

.card-grid {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(240px, 1fr));
  gap: 1rem;
  margin-bottom: 1.5rem;
}

/* ===== CALL-OUT BOXES ===== */
.callout {
  border-radius: 8px;
  padding: 1rem 1.25rem;
  margin: 1rem 0;
  font-size: 0.9rem;
  border-left: 3px solid;
}

.callout-warn {
  background: rgba(210, 153, 34, 0.08);
  border-color: var(--accent-orange);
  color: var(--accent-orange);
}

.callout-danger {
  background: rgba(248, 81, 73, 0.08);
  border-color: var(--accent-red);
  color: var(--accent-red);
}

.callout-tip {
  background: rgba(63, 185, 80, 0.08);
  border-color: var(--accent-green);
  color: var(--accent-green);
}

.callout-info {
  background: rgba(88, 166, 255, 0.08);
  border-color: var(--accent-blue);
  color: var(--accent-blue);
}

.callout strong {
  font-weight: 700;
}

/* ===== PARTS TABLE ===== */
.parts-table-wrap {
  overflow-x: auto;
  margin: 1.25rem 0;
  border: 1px solid var(--border);
  border-radius: 10px;
}

.parts-table {
  width: 100%;
  border-collapse: collapse;
  font-size: 0.88rem;
}

.parts-table thead {
  background: var(--bg-tertiary);
}

.parts-table th {
  text-align: left;
  padding: 0.75rem 1rem;
  font-weight: 600;
  color: var(--text-secondary);
  font-size: 0.78rem;
  text-transform: uppercase;
  letter-spacing: 0.06em;
  border-bottom: 1px solid var(--border);
  white-space: nowrap;
}

.parts-table td {
  padding: 0.7rem 1rem;
  border-bottom: 1px solid var(--border);
  vertical-align: top;
}

.parts-table tr:last-child td { border-bottom: none; }

.parts-table tr:hover td {
  background: rgba(88, 166, 255, 0.04);
}

.parts-table .qty {
  text-align: center;
  font-weight: 700;
  color: var(--accent-cyan);
  min-width: 2.5rem;
}

.parts-table .part-num {
  font-family: var(--font-mono);
  font-size: 0.82rem;
  color: var(--accent-purple);
}

.parts-table .purpose {
  color: var(--text-secondary);
  font-size: 0.85rem;
}

.section-row td {
  background: var(--bg-secondary);
  font-weight: 600;
  color: var(--text-primary);
  font-size: 0.85rem;
  letter-spacing: 0.02em;
}

/* ===== SVG DIAGRAMS ===== */
.diagram-container {
  background: var(--bg-secondary);
  border: 1px solid var(--border);
  border-radius: 10px;
  padding: 1.5rem;
  margin: 1.25rem 0;
  overflow-x: auto;
  text-align: center;
}

.diagram-label {
  font-size: 0.78rem;
  font-weight: 600;
  text-transform: uppercase;
  letter-spacing: 0.06em;
  color: var(--text-muted);
  margin-bottom: 1rem;
  display: flex;
  align-items: center;
  justify-content: center;
  gap: 0.5em;
}

.diagram-label::before,
.diagram-label::after {
  content: '';
  flex: 1;
  max-width: 80px;
  height: 1px;
  background: var(--border);
}

svg.schematic {
  max-width: 100%;
  height: auto;
}

/* ===== ASSEMBLY STEPS ===== */
.step {
  display: flex;
  gap: 1.25rem;
  margin-bottom: 1.5rem;
  padding: 1.25rem;
  background: var(--bg-card);
  border: 1px solid var(--border);
  border-radius: 10px;
  transition: border-color 0.2s;
}

.step:hover {
  border-color: var(--accent-blue);
}

.step-num {
  flex-shrink: 0;
  width: 36px;
  height: 36px;
  background: linear-gradient(135deg, var(--accent-blue), var(--accent-cyan));
  border-radius: 50%;
  display: flex;
  align-items: center;
  justify-content: center;
  font-weight: 800;
  font-size: 0.85rem;
  color: var(--bg-primary);
}

.step-content h4 {
  font-size: 1rem;
  font-weight: 600;
  margin-bottom: 0.35rem;
  color: var(--text-primary);
}

.step-content p {
  font-size: 0.9rem;
  color: var(--text-secondary);
  margin-bottom: 0;
}

.step-content code {
  font-family: var(--font-mono);
  background: rgba(88, 166, 255, 0.1);
  color: var(--accent-blue);
  padding: 0.15em 0.45em;
  border-radius: 4px;
  font-size: 0.85em;
}

/* ===== TROUBLESHOOTING TABLE ===== */
.trouble-table {
  width: 100%;
  border-collapse: collapse;
  font-size: 0.88rem;
  margin: 1rem 0;
}

.trouble-table th {
  text-align: left;
  padding: 0.65rem 1rem;
  background: var(--bg-tertiary);
  font-weight: 600;
  font-size: 0.78rem;
  text-transform: uppercase;
  letter-spacing: 0.06em;
  color: var(--text-secondary);
  border-bottom: 1px solid var(--border);
}

.trouble-table td {
  padding: 0.65rem 1rem;
  border-bottom: 1px solid var(--border);
  color: var(--text-secondary);
  vertical-align: top;
}

.trouble-table tr:hover td {
  background: rgba(248, 81, 73, 0.04);
}

.trouble-table .problem {
  color: var(--accent-red);
  font-weight: 600;
  font-size: 0.85rem;
}

/* ===== CODE BLOCK ===== */
.code-block {
  background: var(--bg-primary);
  border: 1px solid var(--border);
  border-radius: 8px;
  padding: 1rem 1.25rem;
  font-family: var(--font-mono);
  font-size: 0.82rem;
  color: var(--text-secondary);
  overflow-x: auto;
  margin: 1rem 0;
  line-height: 1.6;
}

/* ===== FOOTER ===== */
.footer {
  text-align: center;
  padding: 2rem 0;
  margin-top: 2rem;
  border-top: 1px solid var(--border);
  font-size: 0.82rem;
  color: var(--text-muted);
}

/* ===== RESPONSIVE ===== */
@media (max-width: 640px) {
  #app { padding: 1rem 0.75rem 3rem; }
  .hero h1 { font-size: 1.6rem; }
  .hero { padding: 2rem 1rem 2rem; }
  .step { flex-direction: column; gap: 0.75rem; }
  .toc ul { grid-template-columns: 1fr; }
  .card-grid { grid-template-columns: 1fr; }
  .hero-meta { gap: 1rem; }
}
</style>
</head>
<body>
<header class="hero">
  <span class="hero-badge">🔌 Electronics Project Guide</span>
  <h1>Build a Stereo Audio Amplifier</h1>
  <p class="hero-sub">A complete, beginner-friendly guide to wiring a dual LM386 stereo amplifier on a breadboard — from parts list to first sound.</p>
  <div class="hero-meta">
    <span>📐 Difficulty: Intermediate</span>
    <span>⏱ Estimated Time: 45–60 min</span>
    <span>🔊 Output: Stereo into 8 Ω speakers</span>
  </div>
</header>

<nav class="toc">
  <h2>Contents</h2>
  <ul>
    <li><a href="#intro"><span class="toc-num">01</span> Introduction</a></li>
    <li><a href="#safety"><span class="toc-num">02</span> Safety &amp; Prerequisites</a></li>
    <li><a href="#parts"><span class="toc-num">03</span> Complete Parts List</a></li>
    <li><a href="#diagrams"><span class="toc-num">04</span> Circuit Diagrams</a></li>
    <li><a href="#assembly"><span class="toc-num">05</span> Assembly Instructions</a></li>
    <li><a href="#troubleshooting"><span class="toc-num">06</span> Testing &amp; Troubleshooting</a></li>
  </ul>
</nav>

<main id="content-area"></main>

<footer class="footer">
  <p>🔊 Stereo Audio Amplifier Build Guide — LM386 Breadboard Project</p>
  <p style="margin-top:0.3rem;">Built for learning. Always observe safe workbench practices.</p>
</footer>
<script>
(function () {
'use strict';
var __mods = {};
var __cache = {};
var __map = {"src/main.ts":{"./content":"src/content.ts","./diagrams":"src/diagrams.ts"}};
function __require(id) {
  if (__cache[id]) return __cache[id].exports;
  var module = __cache[id] = { exports: {} };
  var factory = __mods[id];
  if (!factory) throw new Error("Module not found: " + id);
  factory(module.exports, function (spec) {
    var target = (__map[id] && __map[id][spec]) || spec;
    return __require(target);
  }, module);
  return module.exports;
}

// ── module: src/main.ts ──
__mods["src/main.ts"] = function (exports, require, module) {
"use strict";
Object.defineProperty(exports, "__esModule", { value: true });
const content_1 = require("./content");
const diagrams_1 = require("./diagrams");
const contentArea = document.getElementById('content-area');
// Build the diagrams section HTML
const diagramsSection = `
<section class="section" id="diagrams">
  <span class="section-anchor"></span>
  <h2><span class="icon">📐</span> 4 — Circuit Diagrams</h2>
  <p>Two views are provided: a <strong>schematic diagram</strong> using standard electronic symbols, and a <strong>breadboard layout</strong> showing physical pin placement. Study the schematic first, then use the breadboard view when wiring.</p>

  <h3>4.1 — Single-Channel Schematic (One LM386)</h3>
  ${diagrams_1.schematicSVG}

  <h3>4.2 — LM386 Pinout Reference</h3>
  ${diagrams_1.pinoutSVG}

  <h3>4.3 — Breadboard Wiring Diagram (Left Channel)</h3>
  ${diagrams_1.breadboardSVG}
</section>`;
// Assemble all sections in order
contentArea.innerHTML = content_1.introSection +
    content_1.safetySection +
    content_1.partsSection +
    diagramsSection +
    content_1.assemblySection +
    content_1.troubleSection;
};

// ── module: src/content.ts ──
__mods["src/content.ts"] = function (exports, require, module) {
"use strict";
// Guide content sections
Object.defineProperty(exports, "__esModule", { value: true });
exports.troubleSection = exports.assemblySection = exports.partsSection = exports.safetySection = exports.introSection = void 0;
exports.introSection = `
<section class="section" id="intro">
  <span class="section-anchor"></span>
  <h2><span class="icon">📖</span> 1 — Introduction</h2>
  <p>
    An audio amplifier takes a small electrical signal from a music source (smartphone, MP3 player, computer) and increases its power so it can drive loudspeakers. At its heart lies an <strong>operational amplifier (op-amp)</strong> or dedicated audio amplifier IC configured with external components to set gain, filter frequencies, and couple signals cleanly.
  </p>
  <p>
    In this project we use <strong>two LM386</strong> monolithic audio power amplifier ICs — one for the left channel and one for the right — to build a full stereo amplifier. The LM386 is legendary among hobbyists: it runs on 4–12 V, needs only a handful of external components, and delivers up to 325 mW into an 8 Ω speaker.
  </p>
  <p>
    By the end of this guide you will have a working stereo amplifier sitting on a breadboard, connected to your phone or laptop and driving a pair of small 8 Ω speakers. No soldering required — everything is prototyped with jumper wires and through-hole components.
  </p>

  <div class="callout callout-info">
    <strong>💡 Why the LM386?</strong> It's inexpensive (≈$0.60), widely available, internally frequency-compensated, and requires only two external capacitors to produce audio. The gain is set by a single capacitor between pins 1 and 8 (or left open for ×20 gain).
  </div>

  <h3>How the LM386 Works (Simplified)</h3>
  <p>
    The LM386 is a class AB power amplifier in an 8-pin DIP package. Audio enters at pin 3 (non-inverting input). The IC internally amplifies the signal and delivers the output at pin 5, which can drive an 8 Ω speaker. Pins 6 and 7 accept the positive supply (V<sub>CC</sub>) and pin 4 is ground. A bypass capacitor from pin 6 to pin 4 suppresses power-supply ripple.
  </p>
  <p>
    <strong>Gain setting:</strong> A capacitor between pins 1 and 8 adds an internal 150 Ω and external resistor (typically 10 kΩ) in parallel, raising the gain from the default ×20 to approximately ×200. Without this capacitor (or with pins 1–8 shorted), the gain stays at ×20.
  </p>

  <h3>Circuit Topology Overview</h3>
  <p>Both channels share the same topology and the same power rails:</p>
  <ol>
    <li><strong>Input coupling</strong> — A 10 µF capacitor blocks DC from the audio source.</li>
    <li><strong>Gain setting</strong> — A 10 kΩ resistor + 0.1 µF capacitor from pin 1 to pin 8 gives ≈×200 gain.</li>
    <li><strong>Volume control</strong> — A 10 kΩ potentiometer between the input cap and pin 3 lets you adjust level.</li>
    <li><strong>Output coupling</strong> — A 220 µF capacitor blocks DC from reaching the speaker.</li>
    <li><strong>Supply decoupling</strong> — A 20 µF (or 25 µF) capacitor from pin 6 to pin 4 reduces ripple and improves transient response.</li>
    <li><strong>Tone shaping</strong> (optional) — A 3.9 Ω resistor + 0.05 µF capacitor from pin 1 to pin 8 rolls off high-frequency gain for better sound.</li>
  </ol>
</section>`;
exports.safetySection = `
<section class="section" id="safety">
  <span class="section-anchor"></span>
  <h2><span class="icon">⚠️</span> 2 — Safety &amp; Prerequisites</h2>

  <div class="card-grid">
    <div class="card">
      <span class="card-icon">🔋</span>
      <h4>Low Voltage Only</h4>
      <p>This circuit runs at 9 V — well below dangerous levels. Never substitute the supply with mains voltage (110/230 V) directly; that will destroy the IC and could cause serious injury.</p>
    </div>
    <div class="card">
      <span class="card-icon">🧤</span>
      <h4>ESD &amp; Static</h4>
      <p>Handle the LM386 by its edges. Although it's fairly robust, static discharge can degrade performance over time. A grounded wrist strap is ideal but not mandatory at 9 V.</p>
    </div>
    <div class="card">
      <span class="card-icon">🔥</span>
      <h4>Thermal Awareness</h4>
      <p>The LM386 can get warm during operation — this is normal. If it becomes too hot to touch, reduce the volume or check for a short circuit. Never cover it while powered.</p>
    </div>
    <div class="card">
      <span class="card-icon">🎧</span>
      <h4>Hearing Protection</h4>
      <p>Feedback squeals or sudden loud bursts can damage hearing. Start with volume at minimum and increase gradually. Consider using ear protection for the first power-up.</p>
    </div>
  </div>

  <h3>Tools &amp; Materials You'll Need</h3>
  <div class="parts-table-wrap">
    <table class="parts-table">
      <thead>
        <tr><th>Item</th><th class="qty">Qty</th><th>Purpose</th></tr>
      </thead>
      <tbody>
        <tr><td>Breadboard (full-size, 830 points minimum)</td><td class="qty">1</td><td class="purpose">Prototyping platform — no soldering needed</td></tr>
        <tr><td>Multimeter</td><td class="qty">1</td><td class="purpose">Verify voltages, check continuity, measure speaker resistance</td></tr>
        <tr><td>Wire cutters / strippers</td><td class="qty">1 set</td><td class="purpose">Trim and prepare jumper wires</td></tr>
        <tr><td>Audio source (phone, laptop, MP3 player)</td><td class="qty">1</td><td class="purpose">Provides the stereo line-level signal via 3.5 mm jack</td></tr>
        <tr><td>3.5 mm stereo audio cable</td><td class="qty">1</td><td class="purpose">Carries L/R channels to the breadboard</td></tr>
        <tr><td>Small screwdrivers (optional)</td><td class="qty">1</td><td class="purpose">Tighten binding posts or speaker terminals if applicable</td></tr>
      </tbody>
    </table>
  </div>

  <h3>Knowledge Assumed</h3>
  <ul>
    <li>Basic understanding of voltage, current, and resistance</li>
    <li>Ability to read a schematic (or willingness to follow the breadboard diagram carefully)</li>
    <li>Knowing which side is the "front" of a polarized capacitor (the longer leg is positive)</li>
    <li>Familiarity with a breadboard's internal connectivity (rows vs. power rails)</li>
  </ul>

  <div class="callout callout-danger">
    <strong>🚨 Critical rule:</strong> Always double-check every connection — especially polarity on electrolytic capacitors and the IC orientation — before applying power. A single reversed electrolytic can vent, leak, or pop.
  </div>
</section>`;
exports.partsSection = `
<section class="section" id="parts">
  <span class="section-anchor"></span>
  <h2><span class="icon">📦</span> 3 — Complete Parts List</h2>
  <p>Below is the full bill of materials for the dual-channel stereo amplifier. All components are through-hole, breadboard-friendly, and available from any electronics supplier (Adafruit, SparkFun, DigiKey, Mouser, Amazon, etc.).</p>

  <div class="parts-table-wrap">
    <table class="parts-table">
      <thead>
        <tr><th>Component</th><th class="qty">Qty</th><th>Purpose / Notes</th></tr>
      </thead>
      <tbody>
        <tr class="section-row"><td colspan="3">🔲 Integrated Circuits</td></tr>
        <tr>
          <td><strong>LM386</strong> <span class="part-num">LM386N-1</span></td>
          <td class="qty">2</td>
          <td class="purpose">Monolithic low-voltage audio power amp IC. One per stereo channel. 8-pin DIP package.</td>
        </tr>
        <tr class="section-row"><td colspan="3">🔵 Capacitors — Electrolytic (Polarized)</td></tr>
        <tr>
          <td><strong>220 µF, 25 V</strong> <span class="part-num">ECE-J2EA221</span></td>
          <td class="qty">2</td>
          <td class="purpose">Output coupling capacitors — block DC from the speakers. Long leg = positive.</td>
        </tr>
        <tr>
          <td><strong>10 µF, 16 V</strong> <span class="part-num">ECE-J1CA100</span></td>
          <td class="qty">2</td>
          <td class="purpose">Input coupling capacitors — block DC from the audio source.</td>
        </tr>
        <tr>
          <td><strong>20 µF, 25 V</strong> <span class="part-num">ECE-J2EA201</span></td>
          <td class="qty">2</td>
          <td class="purpose">Supply decoupling — pins 6→4 on each LM386. Reduces power-supply ripple.</td>
        </tr>
        <tr class="section-row"><td colspan="3">🟤 Capacitors — Ceramic (Non-polarized)</td></tr>
        <tr>
          <td><strong>0.1 µF (104)</strong> <span class="part-num">CC0402KRX7R9BB104</span></td>
          <td class="qty">2</td>
          <td class="purpose">Gain-setting capacitor from pin 1 to pin 8. Non-polarized.</td>
        </tr>
        <tr class="section-row"><td colspan="3">🟠 Resistors (¼ W, 5 %)</td></tr>
        <tr>
          <td><strong>10 kΩ</strong> <span class="part-num">CFR-25JB-103</span></td>
          <td class="qty">2</td>
          <td class="purpose">Gain-setting resistor in parallel with the 0.1 µF cap (pins 1→8).</td>
        </tr>
        <tr>
          <td><strong>10 kΩ potentiometer</strong> <span class="part-num">3296W-1-103</span></td>
          <td class="qty">2</td>
          <td class="purpose">Volume control for each channel. Linear taper. Wiper goes to LM386 pin 3.</td>
        </tr>
        <tr>
          <td><strong>3.9 Ω</strong> <span class="part-num">CFR-25JB-390</span></td>
          <td class="qty">2</td>
          <td class="purpose">Optional — combined with 0.05 µF cap for Zobel network / HF roll-off.</td>
        </tr>
        <tr class="section-row"><td colspan="3">🔌 Connectors &amp; Hardware</td></tr>
        <tr>
          <td><strong>8 Ω speaker</strong> <span class="part-num">SPKR-8OHM-3W</span></td>
          <td class="qty">2</td>
          <td class="purpose">Output transducer. ≥3 W rating recommended. Full-range or bookshelf.</td>
        </tr>
        <tr>
          <td><strong>3.5 mm stereo TRS audio jack</strong> <span class="part-num">PJ-063A</span></td>
          <td class="qty">1</td>
          <td class="purpose">Accepts audio input from source. Tip = left, Ring = right, Sleeve = ground.</td>
        </tr>
        <tr>
          <td><strong>9 V battery clip with 2.1 mm barrel jack</strong> <span class="part-num">CONN-9V-CLIP</span></td>
          <td class="qty">1</td>
          <td class="purpose">Power supply. PP3 snap connector wired to a barrel jack for easy plug/unplug.</td>
        </tr>
        <tr>
          <td><strong>Male-male jumper wires (assorted colors)</strong></td>
          <td class="qty">~50</td>
          <td class="purpose">All breadboard connections. Use red = +V, black = GND, other colors = signals.</td>
        </tr>
        <tr>
          <td><strong>Full-size breadboard</strong> <span class="part-num">SNGB-830</span></td>
          <td class="qty">1</td>
          <td class="purpose">830-point breadboard. Each channel uses ~40 rows.</td>
        </tr>
      </tbody>
    </table>
  </div>
</section>`;
exports.assemblySection = `
<section class="section" id="assembly">
  <span class="section-anchor"></span>
  <h2><span class="icon">🔧</span> 5 — Step-by-Step Assembly</h2>
  <p>Follow these steps in order. <strong>Do not apply power until Step 11</strong>. Each step corresponds to the Left (L) channel first, then you replicate for the Right (R) channel.</p>

  <div class="step">
    <div class="step-num">1</div>
    <div class="step-content">
      <h4>Place the LM386 ICs</h4>
      <p>Insert each LM386 into the breadboard so the <strong>semicircular notch</strong> (pin 1 indicator) faces the same direction. Position the first IC so pin 1 is at row R5, columns D/E. The second IC goes 10 rows down (pin 1 at R15). The notch should be on the <em>top</em> of the chip, with pins 1–4 on the left and pins 5–8 on the right (top-down view).</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">2</div>
    <div class="step-content">
      <h4>Establish the Power Rails</h4>
      <p>Connect <strong>+9 V</strong> to the top red power rail of the breadboard using a jumper from your 9 V source. Connect <strong>ground</strong> to the bottom blue rail. These rails run the full length of the board and power every component.</p>
      <p>Run two jumper wires: +9 V rail → pin 6 of each LM386. And +9 V rail → pin 7 of each LM386. This gives each IC its supply voltage.</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">3</div>
    <div class="step-content">
      <h4>Connect Ground</h4>
      <p>Run two jumper wires from the <strong>blue GND rail</strong> to <strong>pin 2</strong> (inverting input, tied to ground) and <strong>pin 4</strong> (ground) of <em>each</em> LM386. These four connections ensure a solid reference.</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">4</div>
    <div class="step-content">
      <h4>Add Supply Decoupling (20 µF)</h4>
      <p>For each channel, place a <strong>20 µF electrolytic capacitor</strong> between <strong>pin 6</strong> (V<sub>CC</sub>) and <strong>pin 4</strong> (GND) of the LM386. The <em>long leg (positive)</em> goes to pin 6, and the short leg (negative) goes to pin 4. This dramatically reduces power-supply noise and transient distortion.</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">5</div>
    <div class="step-content">
      <h4>Set the Gain (10 kΩ + 0.1 µF)</h4>
      <p>For each channel, connect a <strong>10 kΩ resistor</strong> between <strong>pin 1</strong> and <strong>pin 8</strong> of the LM386. In parallel, connect a <strong>0.1 µF ceramic capacitor</strong> (non-polarized) also between pins 1 and 8. This sets the gain to approximately <strong>×200</strong>. Without this network, gain defaults to ×20 (quiet but cleaner).</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">6</div>
    <div class="step-content">
      <h4>Add Optional Zobel Network (3.9 Ω + 0.05 µF)</h4>
      <p>For better stability with inductive loads (speakers), connect a <strong>3.9 Ω resistor</strong> in series with a <strong>0.05 µF ceramic capacitor</strong> between <strong>pin 1</strong> and <strong>pin 8</strong> — in parallel with the existing gain network. This rolls off high-frequency gain and prevents oscillation. You can skip this step; the circuit works fine without it.</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">7</div>
    <div class="step-content">
      <h4>Wire the Audio Input</h4>
      <p>Cut a 3.5 mm stereo audio cable. Strip the jacket to reveal three conductors: <strong>tip (left channel)</strong>, <strong>ring (right channel)</strong>, and <strong>sleeve (ground)</strong>.</p>
      <p>Connect the <strong>tip</strong> conductor to one end of a <strong>10 µF input coupling capacitor</strong> for the left channel. The other end of the capacitor goes to the left channel's potentiometer. Repeat with the <strong>ring</strong> conductor and a second 10 µF cap for the right channel.</p>
      <p>Connect the <strong>sleeve</strong> to the <strong>GND rail</strong>.</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">8</div>
    <div class="step-content">
      <h4>Install Volume Potentiometers (10 kΩ)</h4>
      <p>Each <strong>10 kΩ potentiometer</strong> has 3 terminals. Wire them as an audio volume control:</p>
      <ul>
        <li><strong>Terminal 1</strong>: Connect to the output side of the 10 µF input capacitor (from Step 7).</li>
        <li><strong>Terminal 2 (wiper)</strong>: Connect to <strong>pin 3</strong> (signal input) of the LM386.</li>
        <li><strong>Terminal 3</strong>: Connect to <strong>ground rail</strong>.</li>
      </ul>
      <p>Both channels get their own independent volume control. Turn both pots fully counter-clockwise (minimum) before powering up.</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">9</div>
    <div class="step-content">
      <h4>Connect Output Coupling Capacitors (220 µF)</h4>
      <p>For each channel, connect a <strong>220 µF electrolytic capacitor</strong> from <strong>pin 5</strong> (output) to a spare breadboard row. The <em>long (positive) leg</em> goes to pin 5. The <em>short (negative) leg</em> will connect to the speaker's positive terminal. This capacitor blocks DC from reaching your speaker while passing the amplified audio signal.</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">10</div>
    <div class="step-content">
      <h4>Attach the Speakers</h4>
      <p>Connect the <strong>positive</strong> terminal of each 8 Ω speaker to the <em>negative</em> leg of its respective 220 µF output capacitor. Connect the <strong>negative</strong> terminal of each speaker to the <strong>GND rail</strong>. You now have a complete signal path: audio source → input cap → volume pot → LM386 → output cap → speaker → ground.</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">11</div>
    <div class="step-content">
      <h4>Pre-Power Inspection</h4>
      <p><strong>Before applying power, verify every connection:</strong></p>
      <ul>
        <li>Both LM386 ICs: notch orientation correct, pins seated firmly.</li>
        <li>All electrolytic capacitors: polarity matches the diagram (long leg = positive).</li>
        <li>+9 V connected to pins 6 &amp; 7 only — not pin 4 or 2.</li>
        <li>Ground connected to pins 2 &amp; 4 only.</li>
        <li>Volume pots at minimum (wiper toward GND side).</li>
        <li>No jumper wires bridging +V to GND.</li>
      </ul>
      <p>Use your multimeter in continuity mode to check for shorts between +V rail and GND rail. You should hear <em>no beep</em> (infinite resistance).</p>
    </div>
  </div>

  <div class="step">
    <div class="step-num">12</div>
    <div class="step-content">
      <h4>Power Up &amp; Test</h4>
      <p>Connect your 9 V battery (or bench supply) to the barrel jack. Slowly increase the volume on <em>one channel at a time</em>. Play an audio track from your source. You should hear amplified music from both speakers.</p>
      <p>If you hear a hum or buzz, check your ground connections — this usually means a loose ground wire or a cold solder joint (if soldered). If the IC gets very hot, reduce the volume and recheck the gain network.</p>
      <p>Congratulations — you've built a working stereo amplifier! 🎉</p>
    </div>
  </div>
</section>`;
exports.troubleSection = `
<section class="section" id="troubleshooting">
  <span class="section-anchor"></span>
  <h2><span class="icon">🔍</span> 6 — Testing &amp; Troubleshooting</h2>
  <p>Even experienced builders make mistakes on the first pass. Below are the most common problems, their causes, and how to fix them.</p>

  <div class="parts-table-wrap">
    <table class="trouble-table">
      <thead>
        <tr><th>Problem</th><th>Probable Cause</th><th>Solution</th></tr>
      </thead>
      <tbody>
        <tr>
          <td class="problem">No sound from either speaker</td>
          <td>Volume pots at minimum, audio source muted, or dead battery</td>
          <td>Turn up volume, check source plays through headphones, verify battery is fresh (≥8.5 V)</td>
        </tr>
        <tr>
          <td class="problem">No sound, but IC is warm</td>
          <td>LM386 IC inserted backwards (notch on wrong side)</td>
          <td>Remove power, flip the IC 180° so the notch faces the correct direction</td>
        </tr>
        <tr>
          <td class="problem">Loud buzzing / humming</td>
          <td>Ground loop or loose ground connections; or breadboard rails not connected</td>
          <td>Reseat all ground jumper wires. Ensure both channels share the same ground rail. Use shorter ground wires</td>
        </tr>
        <tr>
          <td class="problem">IC becomes very hot quickly</td>
          <td>Output shorted to supply, or reversed polarity on output capacitor causing damage</td>
          <td>Disconnect power immediately. Check that the 220 µF output cap has the correct polarity. Verify pin 5 is not accidentally bridged to +V</td>
        </tr>
        <tr>
          <td class="problem">Sound from only one channel</td>
          <td>Missing or broken audio cable connection for one channel</td>
          <td>Verify the stereo jack tip and ring are both connected. Test with a known-good audio cable. Check both input capacitors</td>
        </tr>
        <tr>
          <td class="problem">Distorted / clipped sound at low volume</td>
          <td>Gain too high (×200 with hot input), or power supply voltage too low</td>
          <td>Remove the 0.1 µF gain capacitor (keeps 10 kΩ only for ~×200 DC gain). Or remove both gain components for ×20 gain. Verify supply reads ≥8.5 V under load</td>
        </tr>
        <tr>
          <td class="problem">High-pitched squeal / feedback</td>
          <td>Acoustic feedback from speaker to mic, or oscillation due to missing Zobel network</td>
          <td>Move speakers away from the audio source. Add the 3.9 Ω + 0.05 µF Zobel network between pins 1–8. Ensure supply decoupling cap is installed</td>
        </tr>
        <tr>
          <td class="problem">Capacitor bulging or leaking</td>
          <td>Electrolytic capacitor inserted with reversed polarity</td>
          <td>Remove power immediately. Replace the damaged capacitor. Ensure the long leg (+) always connects to the higher potential point</td>
        </tr>
        <tr>
          <td class="problem">Intermittent sound / crackling</td>
          <td>Loose potentiometer wiper, or jumper wire not fully seated in breadboard</td>
          <td>Spray contacts with electronic contact cleaner. Reseat all jumper wires firmly. Try a different potentiometer</td>
        </tr>
      </tbody>
    </table>
  </div>

  <h3>Safe Testing Procedure</h3>
  <div class="callout callout-tip">
    <strong>✅ Always follow this sequence when powering up:</strong>
  </div>
  <ol>
    <li><strong>Disconnect speakers</strong> — Power up first with speakers unplugged to avoid accidental high volume.</li>
    <li><strong>Measure pin voltages</strong> — With a multimeter, verify: pin 6 ≈ 9 V, pin 4 ≈ 0 V, pin 5 ≈ 4.5 V (half-rail quiescent). If pin 5 reads 0 V or 9 V, there's a problem.</li>
    <li><strong>Inject a test tone</strong> — Play a low-volume 1 kHz sine wave from your phone. Slowly increase volume on the pot while monitoring with speakers still disconnected.</li>
    <li><strong>Connect speakers at low volume</strong> — Attach the speaker leads while volume is at minimum, then slowly turn up.</li>
    <li><strong>Monitor temperature</strong> — Touch the IC after 30 seconds of operation. Warm = normal. Hot = investigate.</li>
  </ol>

  <h3>Multimeter Quick-Reference Measurements</h3>
  <div class="code-block">
<span style="color:#8b949e;">// Expected voltages at LM386 pins (+9 V supply, no signal):</span>
Pin 1  (Gain +)  →  ~1.0 V  (reference voltage)
Pin 2  (In −)    →  0.0 V   (tied to GND)
Pin 3  (In +)    →  ~1.0 V  (follows pin 1 via pot)
Pin 4  (GND)     →  0.0 V
Pin 5  (Output)  →  ~4.5 V  (half of Vcc, quiescent)
Pin 6  (Vcc)     →  ~9.0 V
Pin 7  (Vcc)     →  ~9.0 V
Pin 8  (Gain −)  →  ~9.0 V

<span style="color:#8b949e;">// If pin 5 ≈ 0 V or ≈ 9 V → IC is damaged or inserted wrong.</span>
<span style="color:#8b949e;">// If pin 6 & 7 ≈ 0 V → check power supply and rail connections.</span>
  </div>

  <div class="callout callout-warn">
    <strong>⚡ Tip:</strong> If you plan to use this amplifier regularly, consider moving it to a perforated board (Vero board) or designing a simple PCB. Breadboard connections can work loose with vibration from the speakers.
  </div>
</section>`;
};

// ── module: src/diagrams.ts ──
__mods["src/diagrams.ts"] = function (exports, require, module) {
"use strict";
// SVG Circuit Diagrams
Object.defineProperty(exports, "__esModule", { value: true });
exports.breadboardSVG = exports.pinoutSVG = exports.schematicSVG = void 0;
exports.schematicSVG = `
<div class="diagram-container">
  <div class="diagram-label">Schematic — One LM386 Channel</div>
  <svg class="schematic" viewBox="0 0 860 520" xmlns="http://www.w3.org/2000/svg" width="860" height="520">
    <defs>
      <pattern id="grid" width="20" height="20" patternUnits="userSpaceOnUse">
        <circle cx="10" cy="10" r="0.5" fill="#30363d"/>
      </pattern>
    </defs>
    <rect width="860" height="520" fill="url(#grid)" opacity="0.5"/>

    <!-- LM386 IC body -->
    <rect x="320" y="120" width="120" height="280" rx="8" fill="#1a1f2e" stroke="#58a6ff" stroke-width="2"/>
    <text x="380" y="160" text-anchor="middle" fill="#58a6ff" font-size="16" font-weight="700" font-family="sans-serif">LM386</text>
    <text x="380" y="178" text-anchor="middle" fill="#8b949e" font-size="10" font-family="sans-serif">Audio Power Amp</text>
    <circle cx="380" cy="120" r="8" fill="#161b22" stroke="#58a6ff" stroke-width="1.5"/>

    <!-- Left pins -->
    <line x1="320" y1="175" x2="220" y2="175" stroke="#f85149" stroke-width="1.5"/>
    <text x="245" y="169" text-anchor="middle" fill="#e6edf3" font-size="10" font-family="sans-serif">Pin 2 (In −)</text>
    <!-- Ground from pin 2 -->
    <line x1="220" y1="175" x2="195" y2="175" stroke="#8b949e" stroke-width="1.5"/>
    <line x1="180" y1="168" x2="210" y2="168" stroke="#8b949e" stroke-width="1.5"/>
    <line x1="185" y1="178" x2="205" y2="178" stroke="#8b949e" stroke-width="1.5"/>
    <line x1="190" y1="186" x2="200" y2="186" stroke="#8b949e" stroke-width="1.5"/>

    <line x1="320" y1="220" x2="195" y2="220" stroke="#58a6ff" stroke-width="1.5"/>
    <text x="260" y="214" text-anchor="middle" fill="#e6edf3" font-size="10" font-family="sans-serif">Pin 3 (In +)</text>

    <line x1="320" y1="350" x2="195" y2="350" stroke="#f85149" stroke-width="1.5"/>
    <text x="260" y="344" text-anchor="middle" fill="#e6edf3" font-size="10" font-family="sans-serif">Pin 4 (GND)</text>
    <line x1="195" y1="350" x2="170" y2="350" stroke="#8b949e" stroke-width="1.5"/>
    <line x1="155" y1="343" x2="185" y2="343" stroke="#8b949e" stroke-width="1.5"/>
    <line x1="160" y1="353" x2="180" y2="353" stroke="#8b949e" stroke-width="1.5"/>
    <line x1="165" y1="361" x2="175" y2="361" stroke="#8b949e" stroke-width="1.5"/>

    <!-- Right pins -->
    <line x1="440" y1="175" x2="560" y2="175" stroke="#3fb950" stroke-width="1.5"/>
    <text x="500" y="169" text-anchor="middle" fill="#e6edf3" font-size="10" font-family="sans-serif">Pin 5 (Out)</text>

    <line x1="440" y1="220" x2="560" y2="220" stroke="#d29922" stroke-width="1.5"/>
    <text x="500" y="214" text-anchor="middle" fill="#e6edf3" font-size="10" font-family="sans-serif">Pin 6 (Vcc)</text>

    <line x1="440" y1="350" x2="560" y2="350" stroke="#d29922" stroke-width="1.5"/>
    <text x="500" y="344" text-anchor="middle" fill="#e6edf3" font-size="10" font-family="sans-serif">Pin 7 (Vcc)</text>

    <line x1="440" y1="395" x2="560" y2="395" stroke="#bc8cff" stroke-width="1.5"/>
    <text x="500" y="389" text-anchor="middle" fill="#e6edf3" font-size="10" font-family="sans-serif">Pin 8 (Gain)</text>

    <!-- Pin numbers on IC -->
    <text x="314" y="179" text-anchor="end" fill="#f85149" font-size="9" font-weight="600" font-family="sans-serif">2</text>
    <text x="314" y="224" text-anchor="end" fill="#58a6ff" font-size="9" font-weight="600" font-family="sans-serif">3</text>
    <text x="314" y="354" text-anchor="end" fill="#f85149" font-size="9" font-weight="600" font-family="sans-serif">4</text>
    <text x="446" y="179" fill="#3fb950" font-size="9" font-weight="600" font-family="sans-serif">5</text>
    <text x="446" y="224" fill="#d29922" font-size="9" font-weight="600" font-family="sans-serif">6</text>
    <text x="446" y="354" fill="#d29922" font-size="9" font-weight="600" font-family="sans-serif">7</text>
    <text x="446" y="399" fill="#bc8cff" font-size="9" font-weight="600" font-family="sans-serif">8</text>

    <!-- Pin 1 -->
    <line x1="320" y1="197" x2="290" y2="197" stroke="#bc8cff" stroke-width="1.5"/>
    <text x="314" y="201" text-anchor="end" fill="#bc8cff" font-size="9" font-weight="600" font-family="sans-serif">1</text>
    <text x="284" y="192" text-anchor="end" fill="#e6edf3" font-size="9" font-family="sans-serif">Pin 1 (Gain)</text>

    <!-- Audio input -->
    <circle cx="70" cy="220" r="16" fill="none" stroke="#58a6ff" stroke-width="1.5"/>
    <text x="70" y="225" text-anchor="middle" fill="#58a6ff" font-size="12" font-family="sans-serif">♪</text>
    <text x="70" y="248" text-anchor="middle" fill="#8b949e" font-size="9" font-family="sans-serif">Audio</text>
    <text x="70" y="259" text-anchor="middle" fill="#8b949e" font-size="9" font-family="sans-serif">Input</text>
    <line x1="86" y1="220" x2="120" y2="220" stroke="#58a6ff" stroke-width="1.5"/>

    <!-- Input coupling cap 10µF -->
    <line x1="120" y1="220" x2="140" y2="220" stroke="#58a6ff" stroke-width="1.5"/>
    <line x1="140" y1="205" x2="140" y2="235" stroke="#58a6ff" stroke-width="2.5"/>
    <line x1="150" y1="205" x2="150" y2="235" stroke="#58a6ff" stroke-width="2.5"/>
    <line x1="150" y1="220" x2="170" y2="220" stroke="#58a6ff" stroke-width="1.5"/>
    <text x="145" y="197" text-anchor="middle" fill="#58a6ff" font-size="10" font-weight="600" font-family="sans-serif">C_in</text>
    <text x="145" y="248" text-anchor="middle" fill="#8b949e" font-size="9" font-family="sans-serif">10 µF</text>

    <!-- Volume pot 10k -->
    <line x1="170" y1="220" x2="190" y2="220" stroke="#bc8cff" stroke-width="1.5"/>
    <rect x="190" y="208" width="36" height="24" rx="3" fill="none" stroke="#bc8cff" stroke-width="1.5"/>
    <line x1="208" y1="208" x2="208" y2="192" stroke="#bc8cff" stroke-width="1.5"/>
    <polygon points="203,192 213,192 208,180" fill="#bc8cff"/>
    <text x="208" y="174" text-anchor="middle" fill="#bc8cff" font-size="9" font-weight="600" font-family="sans-serif">VOL</text>
    <text x="208" y="248" text-anchor="middle" fill="#8b949e" font-size="9" font-family="sans-serif">10 kΩ</text>
    <line x1="208" y1="192" x2="230" y2="192" stroke="#bc8cff" stroke-width="1.5"/>
    <line x1="230" y1="192" x2="230" y2="220" stroke="#bc8cff" stroke-width="1.5"/>

    <!-- Gain network: 10k + 0.1µF pins 1 to 8 -->
    <line x1="560" y1="395" x2="560" y2="465" stroke="#bc8cff" stroke-width="1.5"/>
    <rect x="548" y="465" width="24" height="14" rx="2" fill="none" stroke="#bc8cff" stroke-width="1.5"/>
    <text x="578" y="477" fill="#8b949e" font-size="9" font-family="sans-serif">10kΩ</text>
    <line x1="560" y1="479" x2="560" y2="492" stroke="#bc8cff" stroke-width="1.5"/>
    <line x1="560" y1="492" x2="290" y2="492" stroke="#bc8cff" stroke-width="1.5"/>
    <line x1="290" y1="492" x2="290" y2="197" stroke="#bc8cff" stroke-width="1.5"/>

    <line x1="590" y1="395" x2="590" y2="465" stroke="#58a6ff" stroke-width="1.5"/>
    <line x1="584" y1="465" x2="596" y2="465" stroke="#58a6ff" stroke-width="2"/>
    <line x1="584" y1="475" x2="596" y2="475" stroke="#58a6ff" stroke-width="2"/>
    <line x1="590" y1="475" x2="590" y2="492" stroke="#58a6ff" stroke-width="1.5"/>
    <line x1="590" y1="492" x2="305" y2="492" stroke="#58a6ff" stroke-width="1.5"/>
    <line x1="305" y1="492" x2="305" y2="197" stroke="#58a6ff" stroke-width="1.5"/>
    <text x="600" y="478" fill="#8b949e" font-size="9" font-family="sans-serif">0.1µF</text>

    <!-- Zobel: 3.9Ω + 0.05µF -->
    <line x1="590" y1="395" x2="625" y2="395" stroke="#39d2c0" stroke-width="1.5"/>
    <rect x="625" y="390" width="22" height="10" rx="2" fill="none" stroke="#39d2c0" stroke-width="1.5"/>
    <text x="636" y="410" text-anchor="middle" fill="#8b949e" font-size="8" font-family="sans-serif">3.9Ω</text>
    <line x1="647" y1="395" x2="670" y2="395" stroke="#39d2c0" stroke-width="1.5"/>
    <line x1="670" y1="390" x2="670" y2="400" stroke="#39d2c0" stroke-width="1.5"/>
    <line x1="675" y1="390" x2="675" y2="400" stroke="#39d2c0" stroke-width="1.5"/>
    <text x="672" y="383" text-anchor="middle" fill="#8b949e" font-size="8" font-family="sans-serif">0.05µF</text>

    <!-- Output coupling cap 220µF -->
    <line x1="560" y1="175" x2="605" y2="175" stroke="#3fb950" stroke-width="1.5"/>
    <line x1="605" y1="160" x2="605" y2="190" stroke="#3fb950" stroke-width="2.5"/>
    <line x1="615" y1="160" x2="615" y2="190" stroke="#3fb950" stroke-width="2.5"/>
    <line x1="615" y1="175" x2="650" y2="175" stroke="#3fb950" stroke-width="1.5"/>
    <text x="610" y="152" text-anchor="middle" fill="#3fb950" font-size="10" font-weight="600" font-family="sans-serif">C_out</text>
    <text x="610" y="205" text-anchor="middle" fill="#8b949e" font-size="9" font-family="sans-serif">220 µF</text>

    <!-- Speaker symbol -->
    <line x1="650" y1="175" x2="700" y2="175" stroke="#3fb950" stroke-width="1.5"/>
    <polygon points="700,162 718,150 718,200 700,188" fill="none" stroke="#3fb950" stroke-width="1.5"/>
